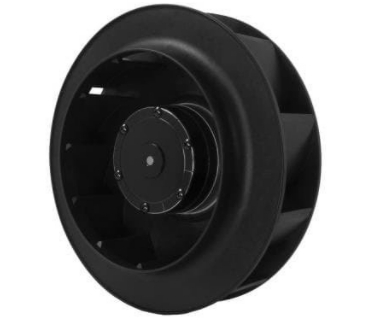

AC 離心風扇-塑膠葉片

C25094

AC 離心風扇-塑膠葉片

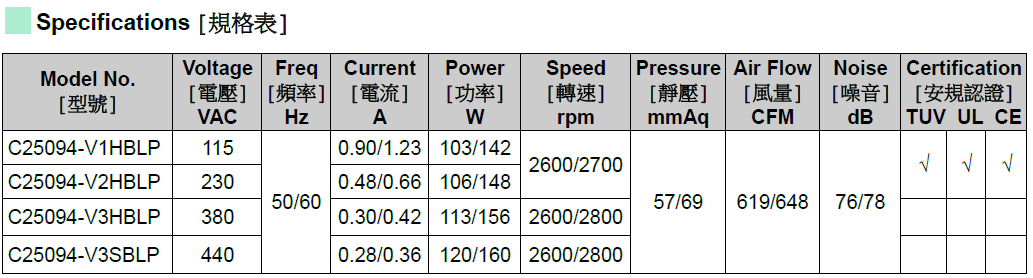

一般規格

SIZE...................................................Ø250x94 mm

MATERIAL...............................................Plastic Impeller【塑膠葉片】
BEARINGS................................................Maintenance-Free Ball Bearings【滾珠軸承】
MOTOR TYPE..............................................AC Induction Capacitor【電容式感應馬達】
CONNECTION..............................................Lead wire【導線連接】
DIELECTRIC STRENGTH.....................................1800 VAC for 1 Sec.【耐壓規格】
INSULATION RESISTANCE...................................100 MΩ min.@500VDC【絕緣阻抗】
OPERATING TEMPERATURE...................................-20℃ to +70℃【操作環溫】
TYPE OF PROTECTION......................................Insulation Class F【線圈等級】

INGRESS PROTECTION......................................IP54【防塵防水】
SAFETY.................................................Thermally Protected (Auto Restart)【溫度開關保護(可自動回復)】

WEIGHT.................................................2090 g

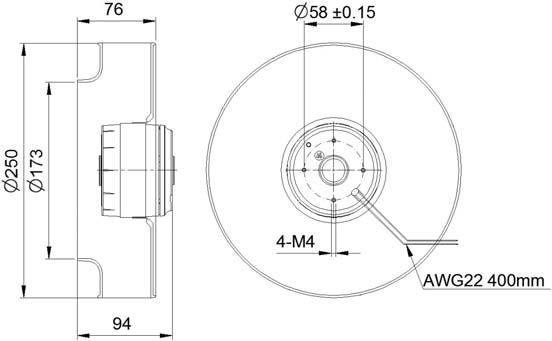

尺寸(單位:mm)

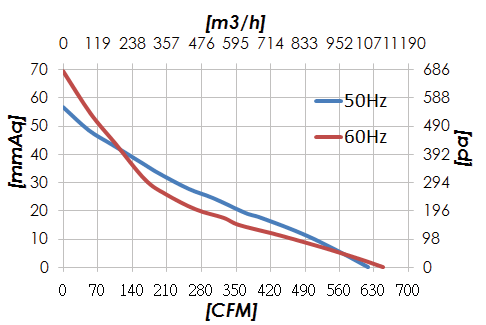

氣流和靜壓
