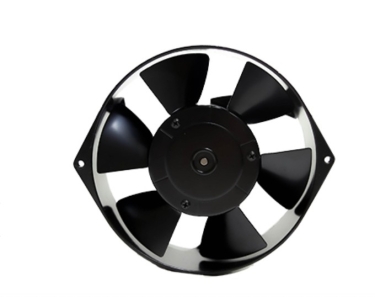

超級增壓扇

A15155-V2HBLS(S)

AC 軸流風扇-金屬葉片
  • SIZE
    172 x 151 x 110 mm
  • MATERIAL
    鋁合金框/金屬葉片
  • COMPLIANCE
    Rohs Compliance
  • DOWNLOAD
一般規格

SIZE...................................................172 x 51 x 110 mm
MATERIAL...................................................Aluminum Housing
【鋁合金框】, Steel Impeller【金屬葉片】
BEARINGS...................................................Maintenance-Free Ball Bearings
【滾珠軸承】
MOTOR TYPE...................................................AC Induction Capacitor
【電容式感應馬達】
CONNECTION...................................................Terminals or Lead wire
【端子或導線連接】
DIELECTRIC STRENGTH...................................................1800 VAC for 1 Sec.
【耐壓規格】
INSULATION RESISTANCE...................................................100 MΩ min.@500VDC
【絕緣阻抗】
OPERATING TEMPERATURE...................................................-20°C to +70°C
【操作環溫】
TYPE OF PROTECTION...................................................Insulation Class F
【線圈等級】

INGRESS PROTECTION......................................IP54(optional IP56, IP67 rated)【防塵防水】
SAFETY......................................Thermally Protected(Auto Restart)
【自動回復式溫度開關安全保護】
WEIGHT......................................2000 g

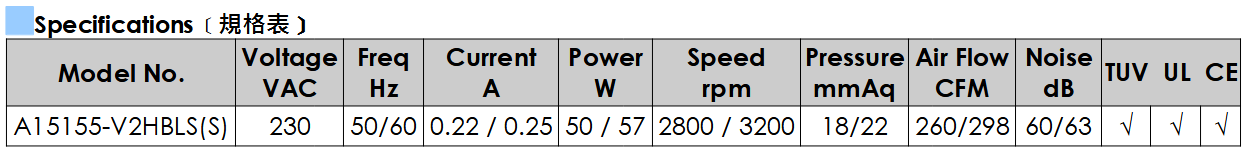

規格表

Model No.

Voltage

VAC

Freq

Hz

Current

A

Power

W

Speed

rpm

Pressure

mmAq

Air Flow

CFM

Noise

dB

TUV  UL  CE

A15155-V2HBLS(S)

230

50/60

0.22 / 0.25

50 / 57

2800 / 3200

18/22

260/298

60/63

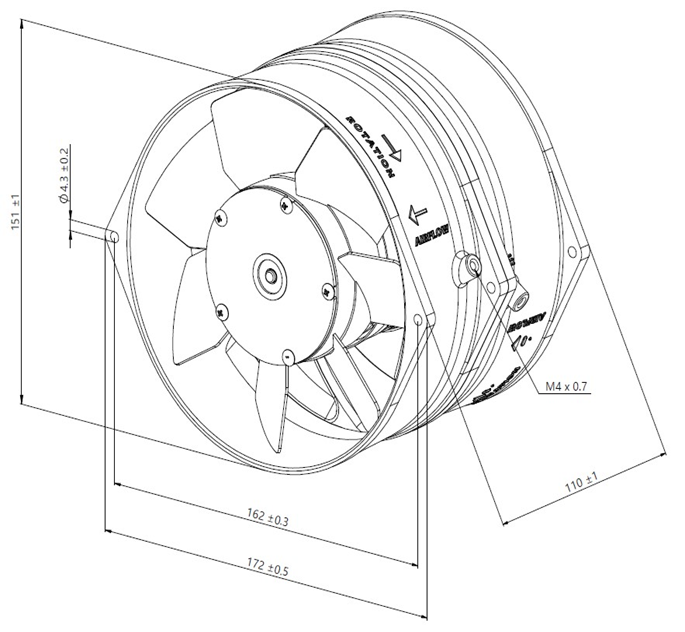

尺寸(單位:mm)

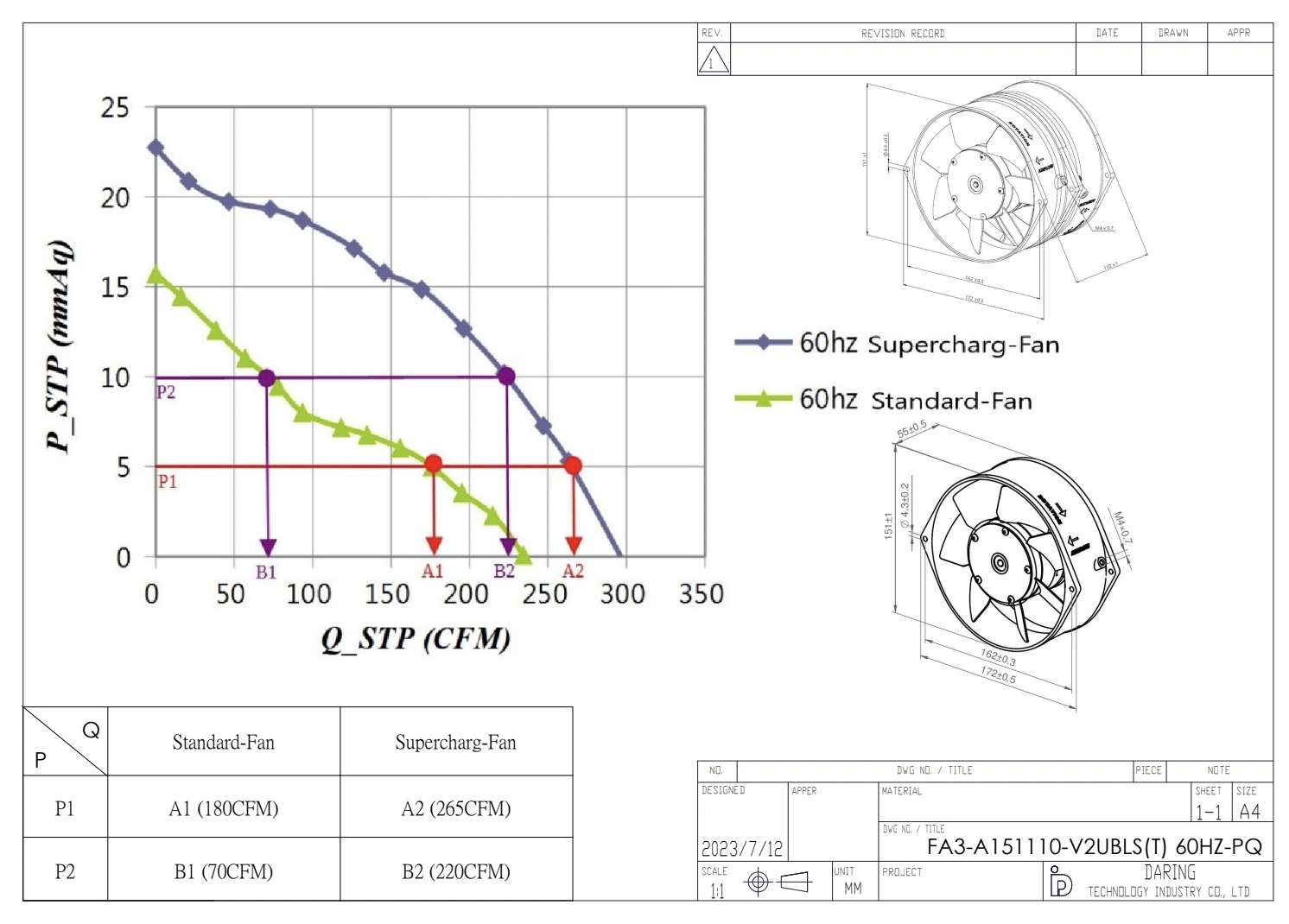

氣流和靜壓
