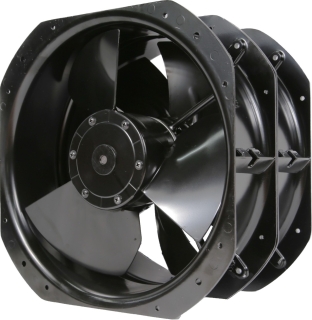

超級增壓扇

A28080-V2HBKS(S)

AC 軸流風扇-金屬葉片
一般規格

SIZE....................................................280x80 mm
MATERIAL....................................................Aluminum Housing
【鋁合金框】, Steel Impeller【金屬葉片】
BEARINGS....................................................Maintenance-Free Ball Bearings
【滾珠軸承】
MOTOR TYPE....................................................AC Induction Capacitor
【電容式感應馬達】
CONNECTION....................................................Terminal Block
【端子台連接】
DIELECTRIC STRENGTH....................................................1800 VAC for 1 Sec.
【耐壓規格】
INSULATION RESISTANCE....................................................100 MΩ min.@500VDC
【絕緣阻抗】
OPERATING TEMPERATURE....................................................-20°C to +70°C
【操作環溫】
TYPE OF PROTECTION....................................................Insulation Class F
【線圈等級】

INGRESS PROTECTION......................................IP54(optional IP56, IP67 rated)【防塵防水】
SAFETY....................................................Thermally Protected(Auto Restart)
【自動回復式溫度開關安全保護】
WEIGHT....................................................6300 g

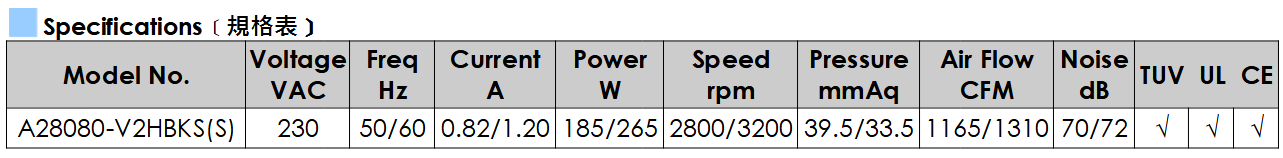

規格表

Model No.

Voltage

VAC

Freq

Hz

Current

A

Power

W

Speed

rpm

Pressure

mmAq

Air Flow

CFM

Noise

dB

TUV  UL  CE

A28080-V2HBKS(S)

230

50/60

0.82 / 1.20

185 / 265

2800 / 3200

39.5 / 33.5

1165 / 1310

70 / 72

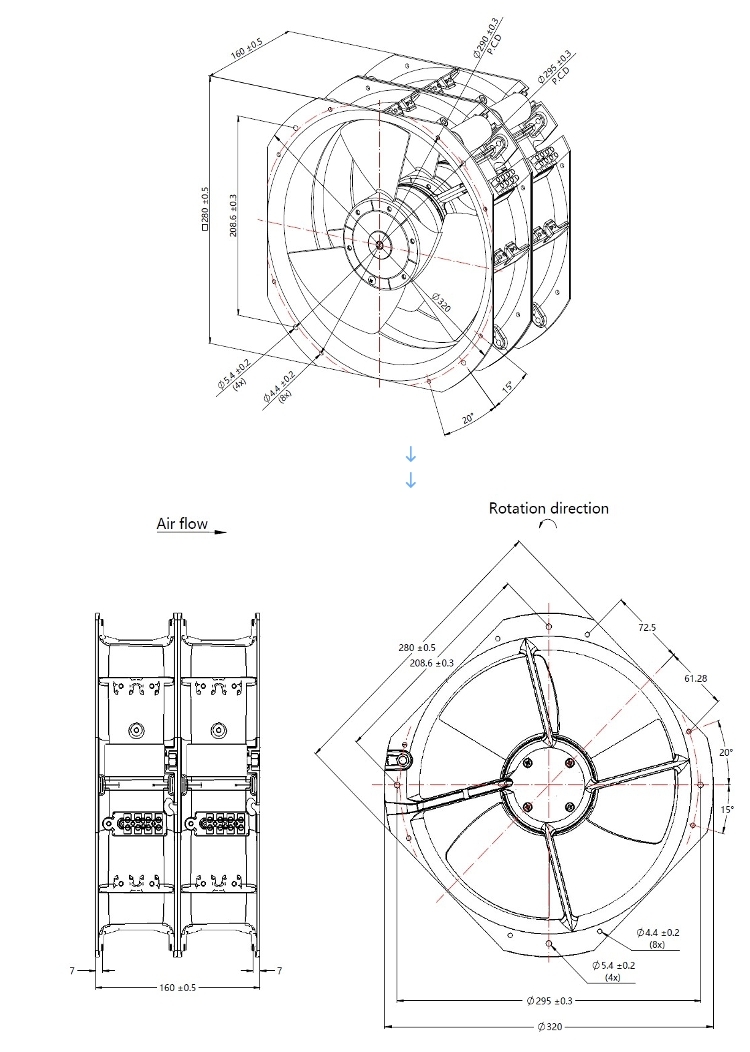

尺寸(單位:mm)

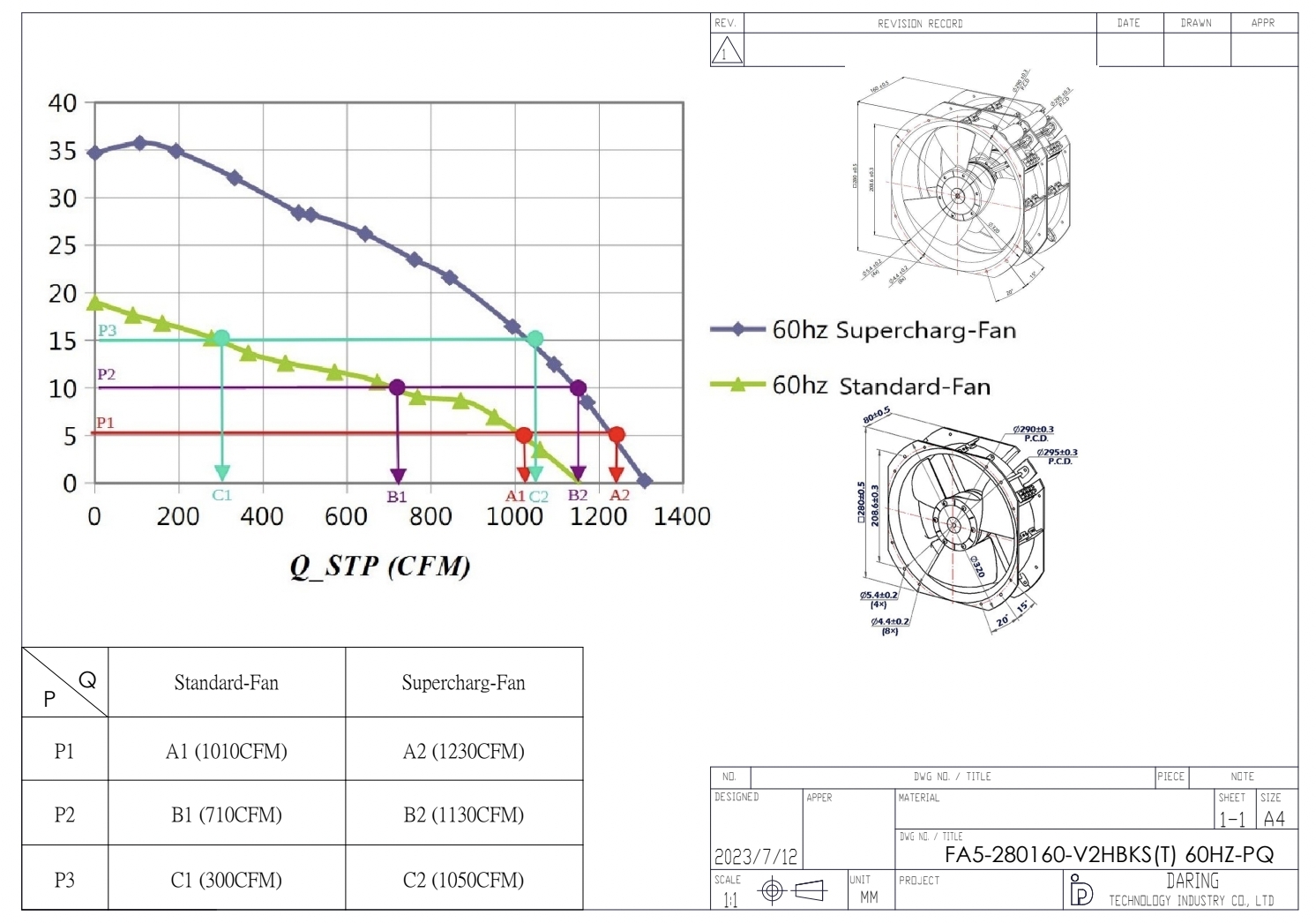

氣流和靜壓
