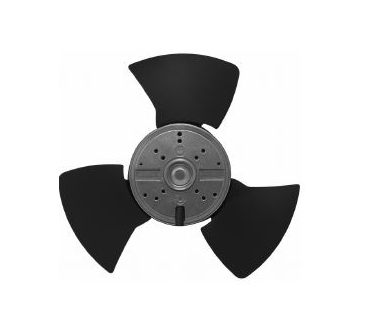

AC 軸流風扇-金屬葉片

NA22672

AC 軸流風扇-金屬葉片
一般規格

SIZE....................................................Ø226x72 mm
MATERIAL....................................................Steel Impeller【金屬葉片】
BEARINGS....................................................Maintenance-Free Ball Bearings【滾珠軸承】
MOTOR TYPE....................................................AC Induction Capacitor【電容式感應馬達】
CONNECTION....................................................Lead wire【導線連接】
DIELECTRIC STRENGTH....................................................1800 VAC for 1 Sec.【耐壓規格】
INSULATION RESISTANCE....................................................100 MΩ min.@500VDC【絕緣阻抗】
OPERATING TEMPERATURE....................................................-20°C to +70°C【操作環溫】
TYPE OF PROTECTION....................................................Insulation Class B,  F【線圈等級】

INGRESS PROTECTION......................................IP54(optional IP56, IP67 rated)【防塵防水】
SAFETY....................................................Thermally Protected(Auto Restart)【自動回復式溫度開關安全保護】
WEIGHT....................................................1900 g

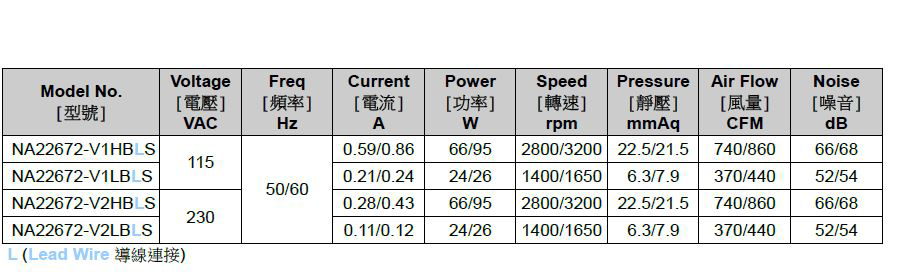

規格表

﹝High Speed﹞

﹝Low Speed﹞

【高&低轉速】

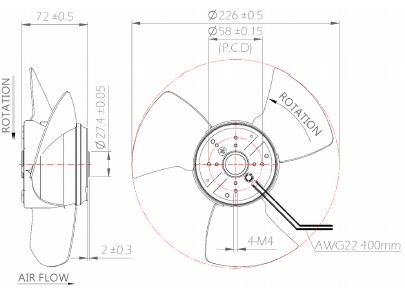

尺寸(單位:mm)

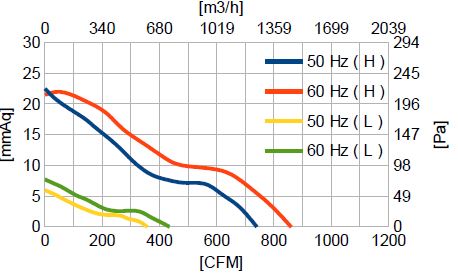

氣流和靜壓
