噴射式增氧機

DP-750

噴射式增氧機 Jet Aerator
一般規格

Type.............................Jet Aerator【噴射式增氧機】

Motor Type....................DC Brushless Motor【DC直流無刷馬達】

Dimensions...................150x100x87.1 cm【尺寸】

Weight..........................40 kg【重量】

Power Consumption........750 W【功率】

Frequency.....................50 / 60 Hz【頻率】

Rated Voltage................220 V【電壓】

...................................*At Rated Voltage 25℃,65%RH, Free Air.*At Rated Voltage AMCA-210-99 Standard.

                                     【額定電壓 25°C,65%RH,免費空氣。*在額定電壓下 AMCA-210-99 標準】

NO. of Phase..................1 Ø【相數】

Horsepower....................1 HP【馬力】

Rotating Speed...............1300 rpm±10%【轉速】

Oxygen-Enriched Capacity.......1.3 mg/L【增氧力】

Horizontal Flow Area...............15 m【最大增氧範圍】

Vertical Flow Area...................2.5 m【最大增氧深度】

Operating Temperature............-10℃~+50℃【運作溫度】

Storage Temperature...............-20℃~+75℃(Normal Humidity)【正常溫度】

Insulation Resistance...............10MΩ / Between unshielded wire and frame at 500 VDC/min【絕緣電阻】

Dielectrical Strength.................5 mA Max. / Measured b/w lead wire (+) and frame at 500VAC/min【介電強度】

Dielectrical Strength..........Auto power off after overheat at rated voltage .【過熱保護 : 在額定電壓下過熱後自動斷電】

Float................................Anti-UV HDPE【抗UV : 高密度聚乙烯】

Impeller............................Aluminum Die Casting【葉輪鋁合金製造】

Shaft................................Ceramic bearing【陶瓷軸承】

Pump Body........................Plastic【塑膠泵體】

Float Color.........................Blue【浮船顏色】

規格表

        達盈獨家設計《新型噴射式增氧機》,取代傳統水車耗電量,採用【DC節能馬達】不僅降低用電量,同時降低運轉的噪音,增氧設備大幅節省耗電外,馬達轉速較高,即可得到氣和水的混合效果。

《浮船設計》

        浮船一體式成形, 材質為HDPE (高密度聚乙烯), 無毒重量輕抗UV、耐候性佳、使用壽命長,浮船結構外獨家設計螺旋蓋可投入浮力球, 若遇浮船磨損破洞,裝載浮力球可幫助浮船形成二次浮力。

《水泵體設計》

        鋁合金材質噴射口採用【文氏管原理】特殊設計讓水流壓力升高,此特性可在噴射口前產生高密度溶合效果,同時也提供了噴水的動能,讓溶合產生的高溶氧液體可以推到超過15公尺的距離, 深度可達2.5公尺,零件使用陶瓷軸承具抗磁電絕緣、壽命長耐磨損、不易腐蝕、耐寒耐溫。



取得中華民國《發明》養殖池增氧機專利證書、《新型》養殖池增氧機專利證書、《實用新型》養殖池增氧機專利證書 、《設計型》水車浮筒專利證書、《新型》水車裝置及浮力載具專利證書、《新型》浮船結構專利證書


         Daring's exclusive designnew type jet aerator, which replaces high power consumption of traditional waterwheels. Adopting [DC energy-saving motor] not only reduces electricity consumption, but also reduces operating noise. Aeration equipment decines great amount of power. With high speed motor could help better the mix of air and water.

《Floating boat design》

         The floating boat is integrally formed. Exclusive design screw cap. Once boat break we could put toy balls inside to reparst which is more convinient to maintain.

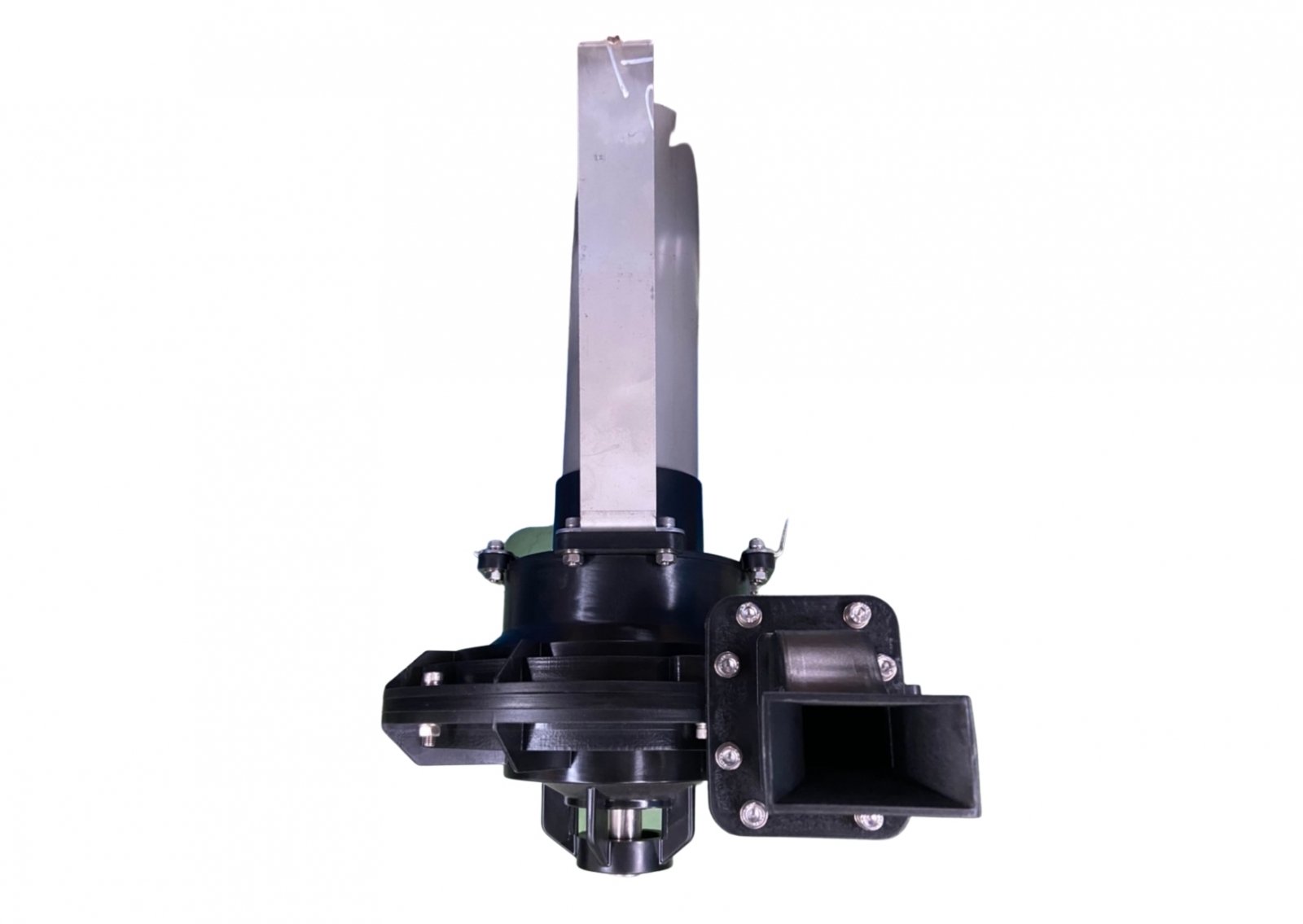

《Pump body design》

         The jet nozzle adoptsVenturi tube. The special design increases water pressure. This feature can produce a high-density fusion effect in front of the injection port, and provides the kinetic energy of the water spray. The high dissolved oxygen liquid produced by the fusion can be pushed to a distance of more than 15 meters.



Obtaining the Republic of China 《Invention》 breeding pond oxygenation machine patent certificate,New type breeding pond oxygen concentrator patent certificate,《Utility Model》 breeding pool oxygen concentrator patent certificate,《Design-type》water truck float patent certificate, Patent certificate for New typewater truck device and buoyancy vehicle,New typePatent certificate of floating ship structure.



台灣製造/設計  Made in Taiwan.

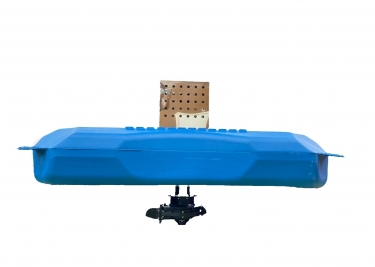

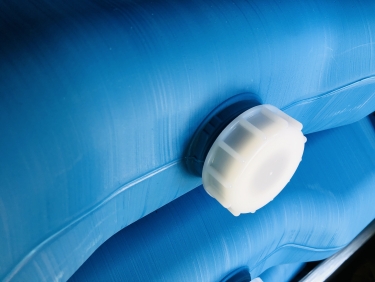

《浮船設計》一體式成形,可裝載浮力球形成二次浮力,材質HDPE (高密度聚乙烯)、無毒 重量輕抗UV、耐候性佳、使用壽命長

《Floating boat design》 The floating boat is integrally formed. Exclusive design screw cap. Once boat break we could put toy balls inside to reparst which is more convinient to maintain. Material HDPE(high density polyethylene), non-toxic, light weight, UV resistant, good weather resistance, long service life.



《陶瓷軸承》壽命長耐磨損、不易腐蝕耐寒耐溫具抗磁電絕緣

Ceramic bearing》Long life time and wear resistance, corrosion resistanance, low and high resistanance, with anti-magnetic and electrical insulation.

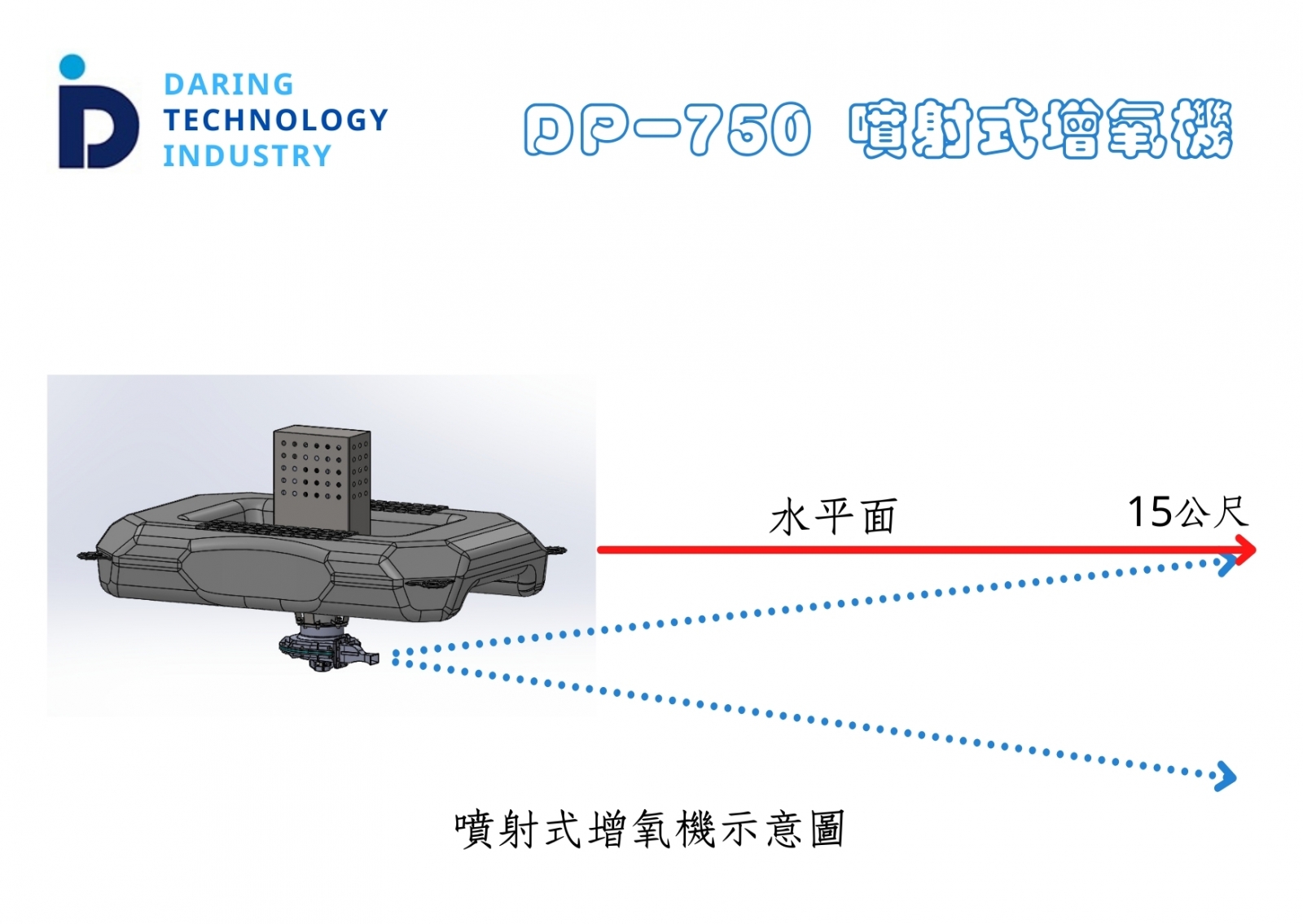

《噴嘴設計》鋁合金材質噴射式噴嘴、氧氣分布最遠可至15公尺、深度可達2.5公尺

《Nozzle design》Aluminium alloy material Injection nozzle, Oxygen distribution can be as far as 15 meters, depth up to 2.5 meters.

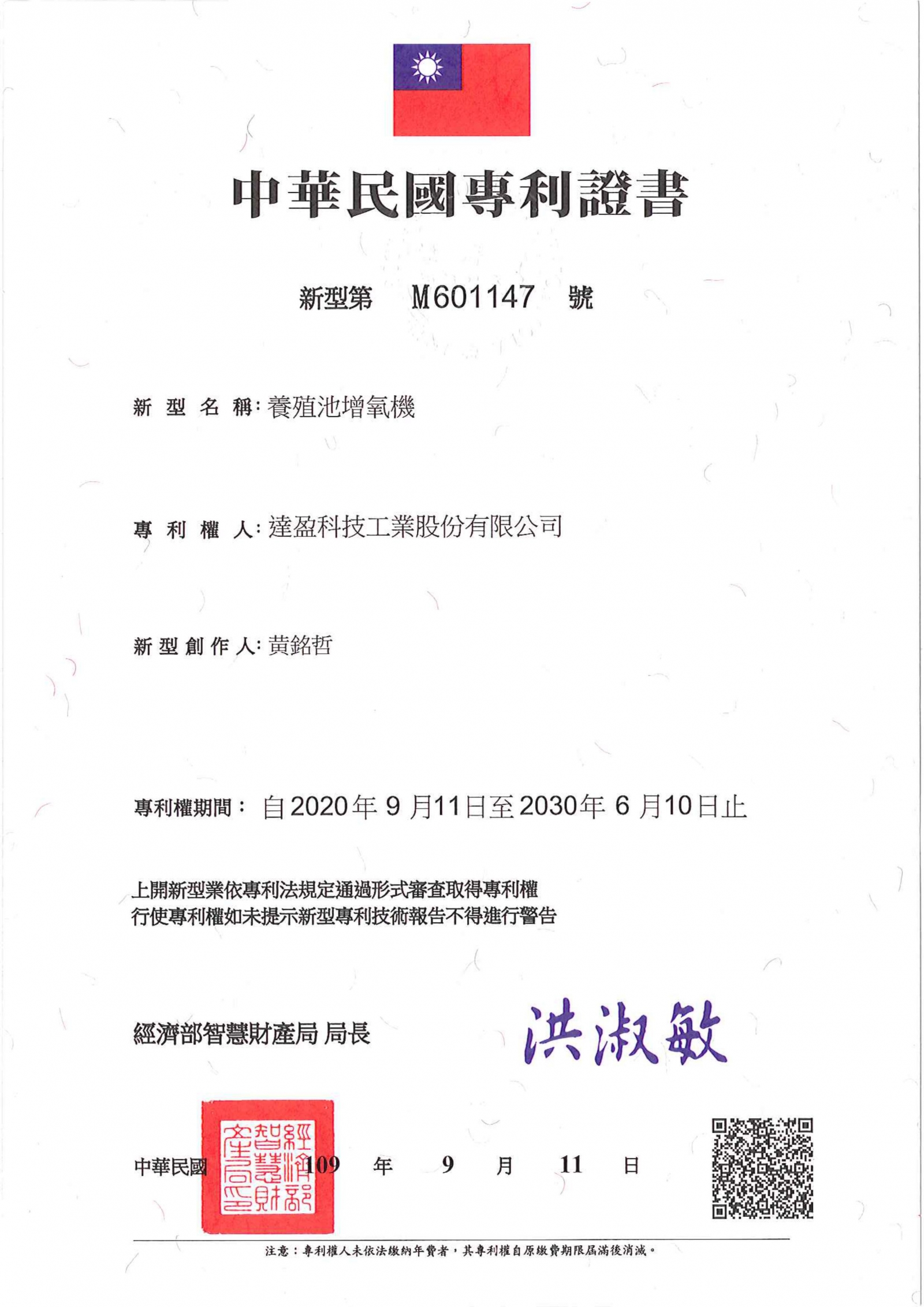

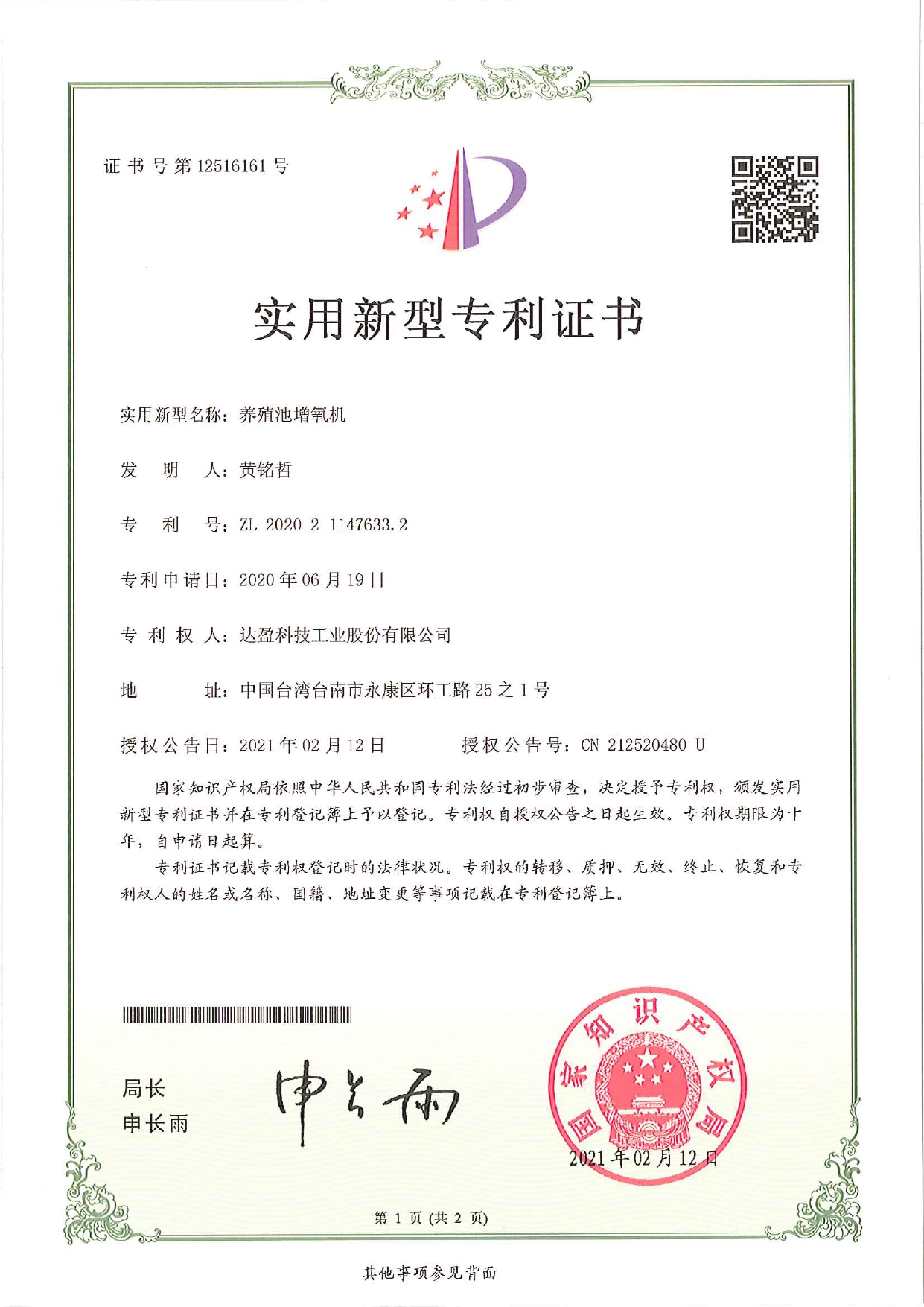

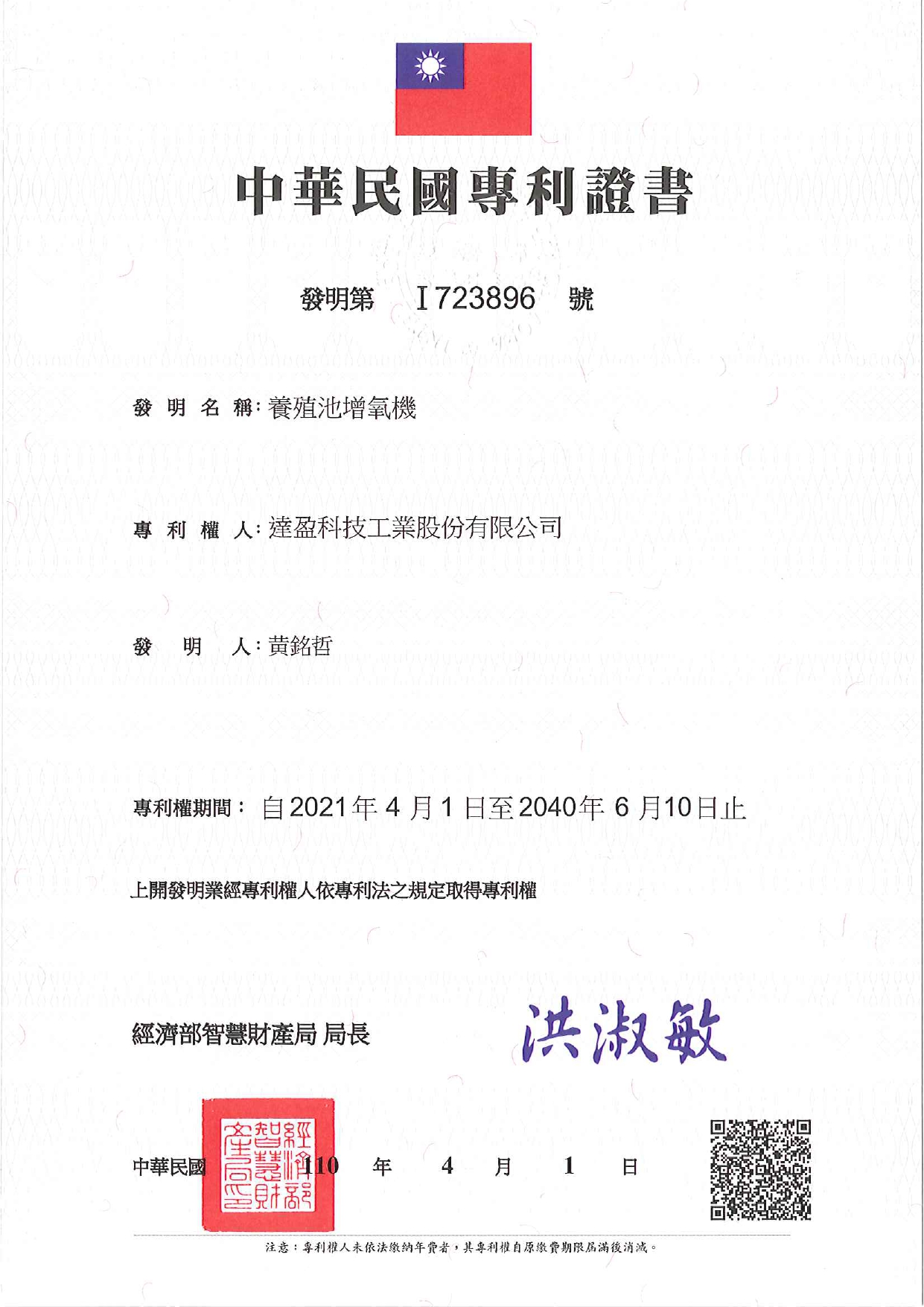

《發明》養殖池增氧機專利證書、《新型》養殖池增氧機專利證書、《實用新型》養殖池增氧機專利證書




《設計型》水車浮筒專利證書、《新型》水車裝置及浮力載具專利證書、《新型》浮船結構專利證書



Copyright ©2021 達盈科技工業股份有限公司 版權所有.

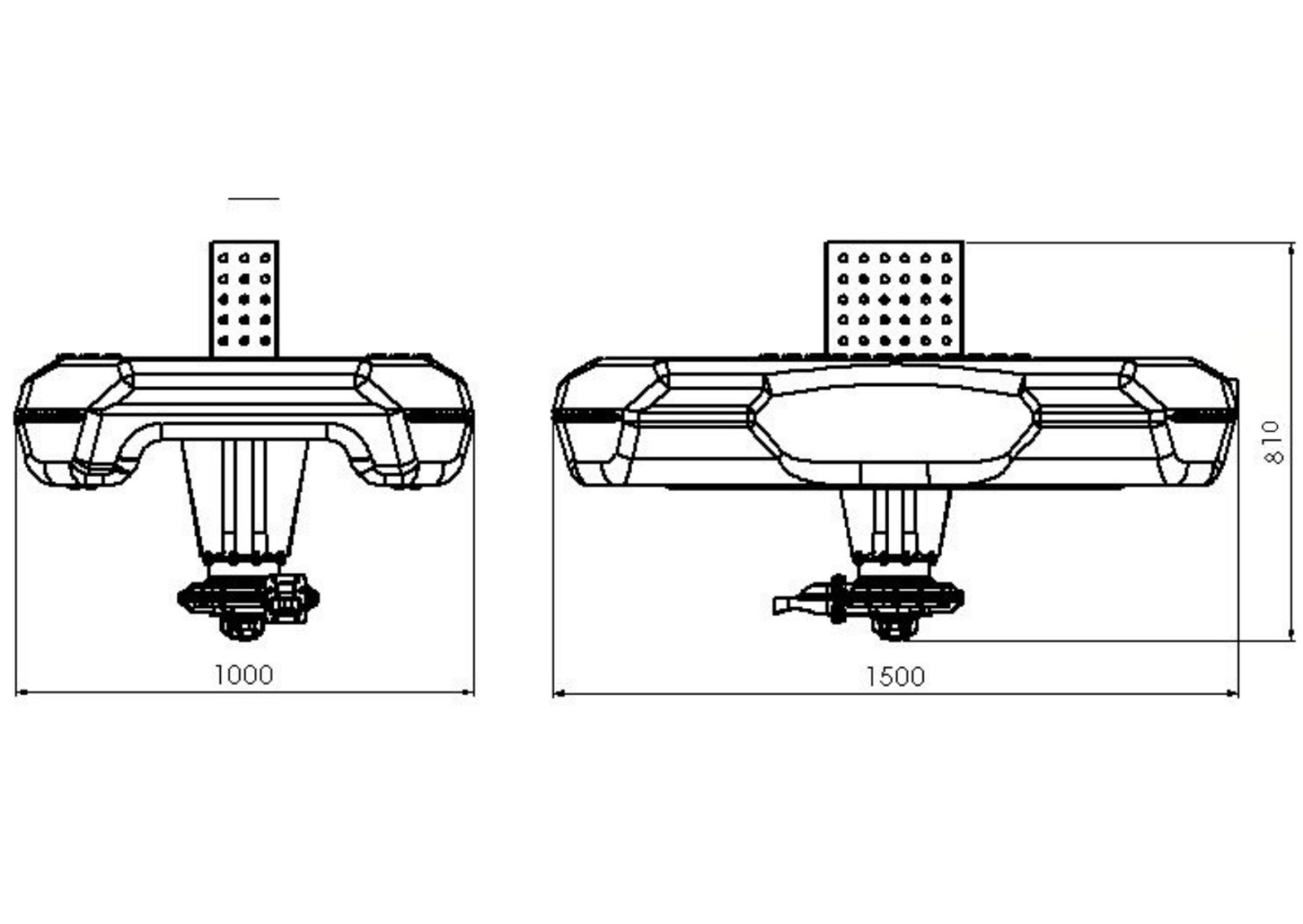

尺寸(單位:mm)
