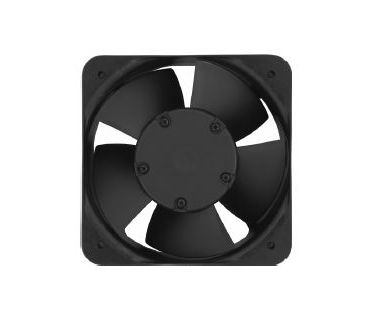

AC 軸流風扇-塑膠葉片

A15051

AC 軸流風扇-塑膠葉片
  • SIZE
    150x150X51 mm
  • MATERIAL
    鋁合金框 /塑膠葉片
  • COMPLIANCE
    Rohs Compliance
  • DOWNLOAD
一般規格

SIZE....................................................150x150x51 mm
MATERIAL................................................Aluminum Housing【鋁合金框】, Plastic Impeller【塑膠葉片】
BEARINGS................................................Maintenance-Free Ball Bearings【滾珠軸承】
MOTOR TYPE..............................................AC Induction Capacitor【電容式感應馬達】
CONNECTION..............................................Terminals or Lead wire【端子或導線連接】
DIELECTRIC STRENGTH.....................................1800 VAC for 1 Sec.【耐壓規格】
INSULATION RESISTANCE...................................100 MΩ min.@500VDC【絕緣阻抗】
OPERATING TEMPERATURE...................................-20℃ to +70℃【操作環溫】
TYPE OF PROTECTION......................................Insulation Class B, F【線圈等級】

INGRESS PROTECTION......................................IP54(optional IP56, IP67 rated)【防塵防水】
SAFETY.................................................Thermally Protected(Auto Restart)【自動回復式溫度開關安全保護】
WEIGHT.................................................920 g

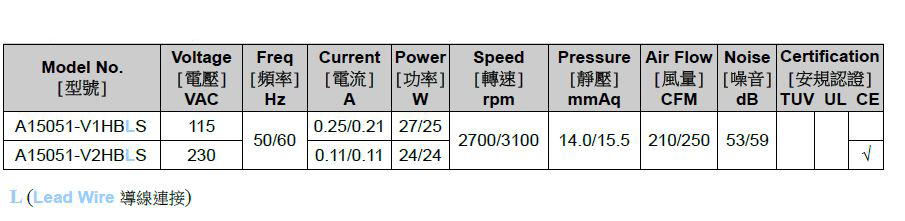

規格表

﹝High Speed﹞

【高轉速】

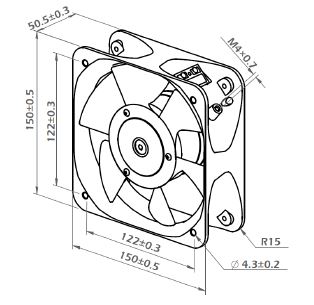

尺寸(單位:mm)

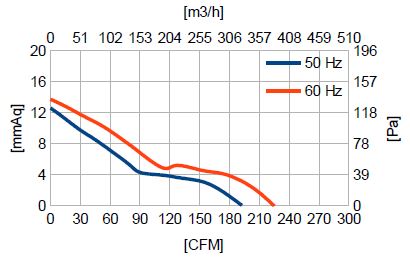

氣流和靜壓
